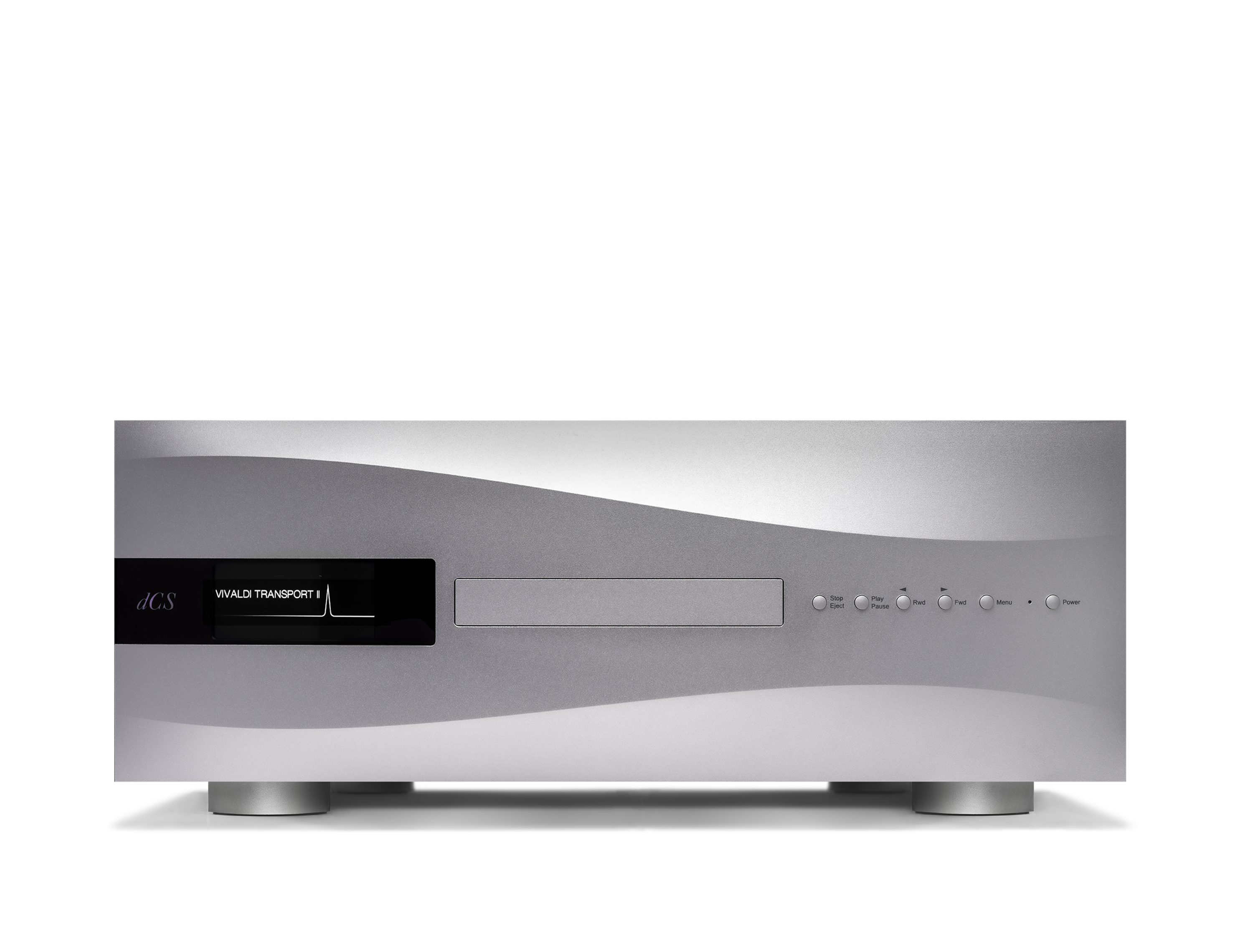

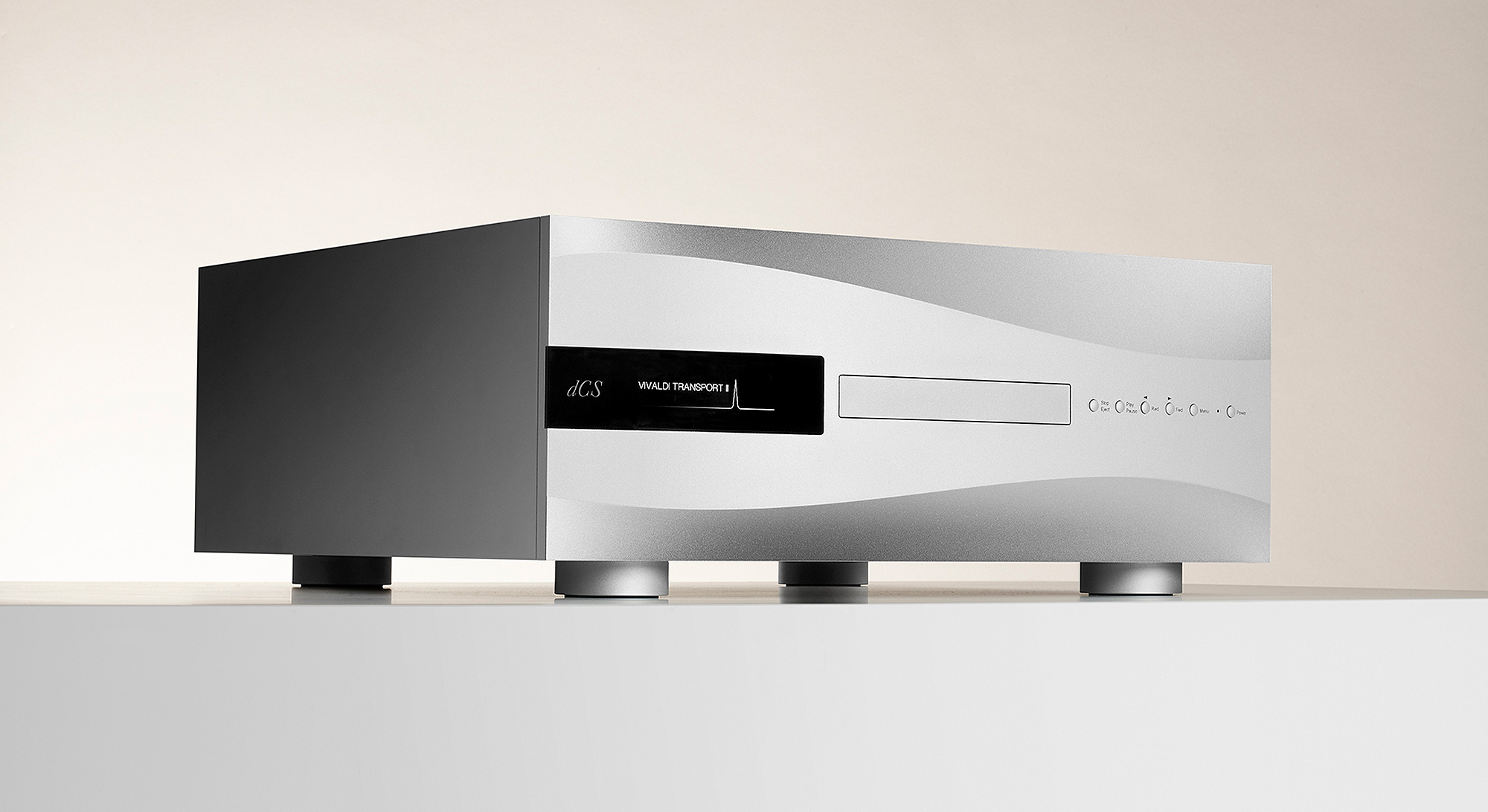

Vivaldi Upsampling CD/SACD 轉盤

dCS Vivaldi新旗艦,重新定義何謂頂尖數位播放系統,其設計完全呈現”絕不妥協”的顛峰之作,無人能敵的家庭式音樂系統,更締造了未來數位音響最新標竿。

Vivaldi Transport的設計在於最極致的表現出CD、SACD的音樂細節以及多元功能的光碟播放器。Vivaldi Transport所有的訊號傳輸都是由dCS設計的電路板所控制。使用TEAC Esoteric VRDS Neo™裝置,以及非常堅固穩定的內部構造,隨著無刷馬達及重飛輪使光碟穩定轉動。

強而有力的Vivaldi Transport數位操作平台是以FPGA晶片,數位訊號操作晶片(DSP)及微控制系統為基礎。它們皆使用dCS在英國研發的編碼。Vivaldi Transport的邏輯運算能力比上一代快2倍,強調無與倫比的音質和精準表現。為了使電源供應更加純淨並隔離電子裝置,Vivaldi Transport全新箱體設計將數位及CD/SACD裝置部分的電流分開。如此一來,機器運作時將會格外安靜。

Vivaldi Transport有兩條AES輸出端子可以支援dCS編碼的DSD(1 bit data at the rate of 2.822MS/s)將CD或SACD傳至dCS的DAC。Vivaldi Transport 也能將CD訊號轉換成DXD(24 bit data at the rate of 352.8kS/s)藉由相同的兩條AES介面傳輸訊號。SACD以原始的DSD格式播放,也是使用兩條AES介面。原始的CD訊號可由4個PCM輸出端子輸出(1x AEC/EBU, 2xSPDIF, 1xSDIF-2),因為已經下降取樣成CD訊號了。

Vivaldi Transport可以和Vivaldi DAC搭配使用或是任何合適規格的DAC。這台機器可以當Master或是當系統主時鐘與DAC一起使用。加上Vivaldi Clock表現會更加提昇。

dCS 簡易的可編程式邏輯方便用戶輕鬆升級Vivaldi Transport軟體,或是添增新的功能,將表現提昇甚至是更改數位格式。Vivaldi Transport無時無刻呈現最真實的表現。

Specification
TypeUpsampling CD/SACD Transport.
ColourSilver or Black.
MechanismDual laser CD/SACD mechanism (TEAC VRDS NEO™ VMK3).
Dimensions444mm/17.5” x 435mm/17.2” x 196mm/7.8”. Allow extra depth for cable connectors.
Weight23.2kg/51.1lbs.
Digital Outputs1x Dual AES interface on 2x 3-pin male XLR connectors, outputs DSD/64 data, whether a CD or SACD is playing. A menu setting changes the format to DXD (24/352.8) or DSDx2 (1/5.644MS/s) when a CD is playing.
1x AES/EBU on 3-pin male XLR connector, outputs PCM at 16 bit/44.1kS/s, whether a CD or SACD is playing.
2x SPDIF on 1x RCA Phono and 1x BNC connectors. Each outputs PCM at 16 bit/44.1kS/s, whether a CD or SACD is playing.
1x SDIF-2 interface on 2x BNC connectors, outputs PCM at 16 bit/44.1kS/s, whether a CD or SACD is playing.
Upsampling RatesCD data may be upsampled to DSD/64, DXD (24/352.8) or DSD/128.
Wordclock I/OWord Clock input on 1x BNC connector, accepts standard Word Clock at 44.1, 88.2 or 176.4kHz. Sensitive to TTL levels.Word Clock input on 1x BNC connector, accepts standard Word Clock at 44.1, 88.2 or 176.4kHz. Sensitive to TTL levels.
Word Clock output on 1x BNC connector. With the transport in Master mode, a TTL-compatible 44.1kHz Word Clock derived from the internal crystal oscillator is available on this output.
Clock AccuracyBetter than +/-10 ppm when shipped (not temperature compensated).
Software UpdatesUpdates are loaded directly from CD-R.
Local ControldCS Premium Remote handset is supplied with Vivaldi DAC. RS232 (controlled by a Vivaldi Upsampler / app or a third party device).
Power SupplyFactory set for 100, 115, 220 or 230V AC, 50-60Hz.
Power Consumption28 Watts typical / 40 Watts maximum.
