BARTÓK升頻數位串流DAC/耳擴

dCS很驕傲的公布了它們的Bartók network DAC and headphone amplifier-一體式,最先進的數位類比轉換器搭載了所有數位串流介面與功能再加上A類的耳擴放大器,有銀色與黑色可供選擇。

最新的dCS BARTÓK承襲了dCS的過去、現在與未來。
BARTÓK取代目前的Debussy DAC,更繼承了ROSSINI系列的DNA、Rossini Ring DAC技術、最高品質的UPNP數位串流技術以及dCS獨家的數位處理介面,在機殼內使用了獨立的電源供應。不管在技術規格,實際表現與量測下,BARTÓK是在此層級最棒的產品。


BARTÓK使用工業標準級的USB、AES或S/PDIF數位輸入來播放音樂。也能夠透過網路經由您的NAS或是網路音樂服務平台,像是TIDAL、Spodify或是Apple裝置經由Air Play來播放。Network的介面能夠完整的解碼與傳輸MQA格式。

DAC解碼的部份使用了獨立的平衡與非平衡輸出,您可以不需透過前級直接連接到後級來作使用,BARTÓK耳擴DAC搭載了標準的耳機擴大機,更使用了dCS的類比輸出針對耳機的阻抗變化加以優化。

如同所有dCS的產品,BARTÓK是由英國最高標準來設計與製造,為了減少機器內部的諧振與共振,機殼使用了航太級鋁合金。多層級的電源規範,使用了兩個主要的變壓器,並且與DAC及耳機擴大機作了相當好的隔離。內部的軟體可透過CD、USB或其他方式更新下載。這也使dCS能夠持續的增加並強化BARTÓK的功能與表現-在多年後,市場上其他對手已經過時,但BARTÓK仍在持續更新與進化。

BARTÓK將帶給您最高的享受,精確、細節以及現場音樂廳的3D還原度。BARTÓK將還原音樂內所有空氣的震動與音樂性,帶來如黑絲絨般安靜的背景與絕佳的動態表現。享受還原現場錄音與音樂不再是音響迷的專利,耳機愛樂者也可以擁有最高層次的聽覺體驗。

BARTÓK升頻數位串流DAC/耳擴

• 最新的dCS數位處理電路與Ring DAC解碼
• 支援UPNP,非同步USB與Apple AirPlay, AES及S/PDIF數位音樂串流
• A類耳擴放大,能夠驅動低與高阻抗的耳機
• 串流服務支援包括TIDAL、Spotify
• 多組Oversampling DSD升頻技術以及多組濾波模式選擇
• 全自動-主時鐘系統將時機誤差降到最低
• 使用dCS 轉盤Dual AES數位輸出,能夠接收SACD訊號
• 多層級電源規範以及兩個主要的變壓器
• 韌體在未來可做軟體升級

Specification
TypeUpsampling Network DAC with Headphone Amplifier

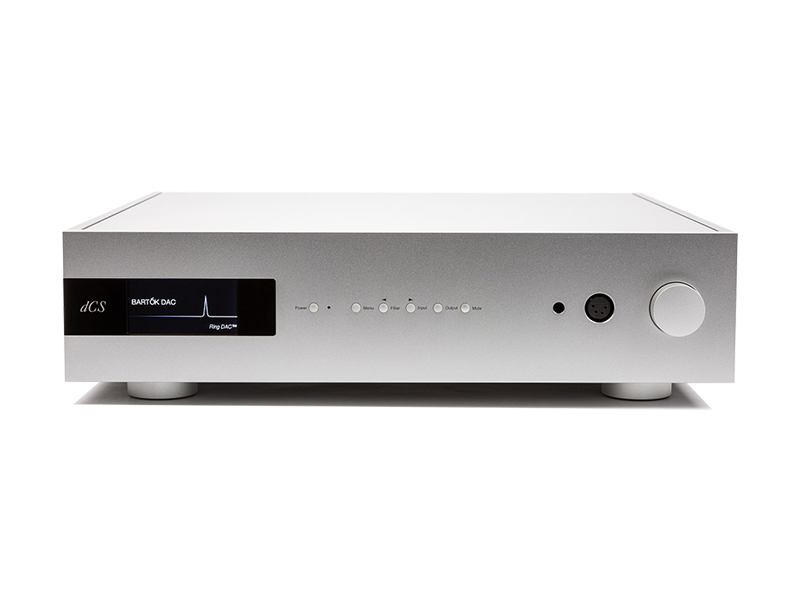

ColourSilver or Black
Dimensions444mm / 17.5” x 430mm / 17.0” x 115mm / 4.6“. Allow extra depth for cable connectors.
Weight16.7kg / 36.8lbs
Converter TypedCS proprietary Ring DAC™ topology
Digital InputsNetwork interface on an RJ45 connector – acts as a UPnP™ renderer in Asynchronous mode, streaming digital music from a NAS or local computer over a standard Ethernet network, decoding all major lossless formats including FLAC, WAV & AIFF at up to 24 bit 384kS/s native sample rate, plus DSD/64 & DSD/128 in DFF/DSF format. Other formats include WMA, ALAC, MP3, AAC & OGG. Some formats are limited to lower sample rates. Supports Apple AirPlay at 44.1 or 48kS/s. Network Loop Out connector on a second RJ45 connector. USB 2.0 interface on a B-type connector operating in Asynchronous mode, will accept up to 24 bit PCM at up to 384kS/s plus DSD/64 & DSD/128 in DoP format. Operates in Class 1 or 2 mode. USB-on-the-go interface on type A connector operating in Asynchronous mode, streams digital music from a flash drive at up to 24 bit 384kS/s plus DSD/64. 2x AES/EBU on 3-pin female XLR connectors. Each will accept PCM at up to 24 bit 192kS/s or DSD/128 in DoP format. Used as a Dual AES pair, it will accept PCM at up to 384kS/s, DSD/64 & DSD/128 in DoP format or dCS-encrypted DSD. 2x SPDIF on 1x RCA Phono and 1x BNC connectors. Each will accept PCM at up to 24 bit 192kS/s or DSD/64 in DoP format. 1x SPDIF optical on a Toslink connector will accept PCM at up to 24 bit 96kS/s
Analogue OutputsOutput levels: 0.2, 0.6, 2 or 6V rms for full-scale input, set in the menu. Balanced outputs: 1 stereo pair on 2x 3-pin XLR male connectors. These outputs are electronically balanced and floating. Output impedance is 3Ω, maximum load is 600Ω (10k-100kΩ is recommended). Unbalanced outputs: 1 stereo pair on 2x RCA phono connectors. Output impedance is 52Ω, maximum load is 600Ω (10k-100kΩ is recommended).
Headphone Outputs1 stereo balanced pair on 1x 4-way male XLR connector. 1 stereo unbalanced pair on 1x 6.35mm (1/4”) 3-pole jack. Full-scale output levels are 1.4W rms into 33Ω, 0.15W rms into 300Ω. Output levels are 0, -10, -20, -30dB, set in the menu. Minimum headphone impedance is 33Ω.
Wordclock I/Oworldclock Io2x Word Clock Inputs on 2x BNC connectors, accept standard word clock at 44.1, 48, 88.2, 96, 176.4 or 192kHz. The data rate can be the same as the clock rate or an exact multiple of the clock rate. Sensitive to TTL levels. Word Clock Output on 1x BNC connector. In Master mode, a TTL-compatible word clock appears on this output.
MQAFull decoding and rendering of MQA data from the Network and USB2 inputs. Final rendering of unfolded MQA data only from the other inputs.
Residual Noise24-bit data: Better than –113dB0, 20Hz – 20kHz unweighted. (6V output setting)
L R CrosstalkBetter than -115dB0, 20Hz – 20kHz
Spurious ResponsesBetter than -105dB0, 20Hz – 20kHz
FiltersPCM mode: up to 6 filters give different trade-offs between the Nyquist image rejection and the phase response. DSD mode: 4 filters progressively reduce out-of-audio band noise level.
ConversionsDXD as standard or optional DSD upsampling
Software UpdatesDownload and update functionality available via Bartók App
Local ControldCS Bartók app for unit configuration and playback. RS232 interface (controlled by a 3rd party automation system). dCS Universal IR remote control is available as an optional extra.
Power SupplyFactory set to either 100, 115/120, 220 or 230/240V AC 50/60Hz.
Power Consumption30 Watts typical / 50 Watts maximum.
