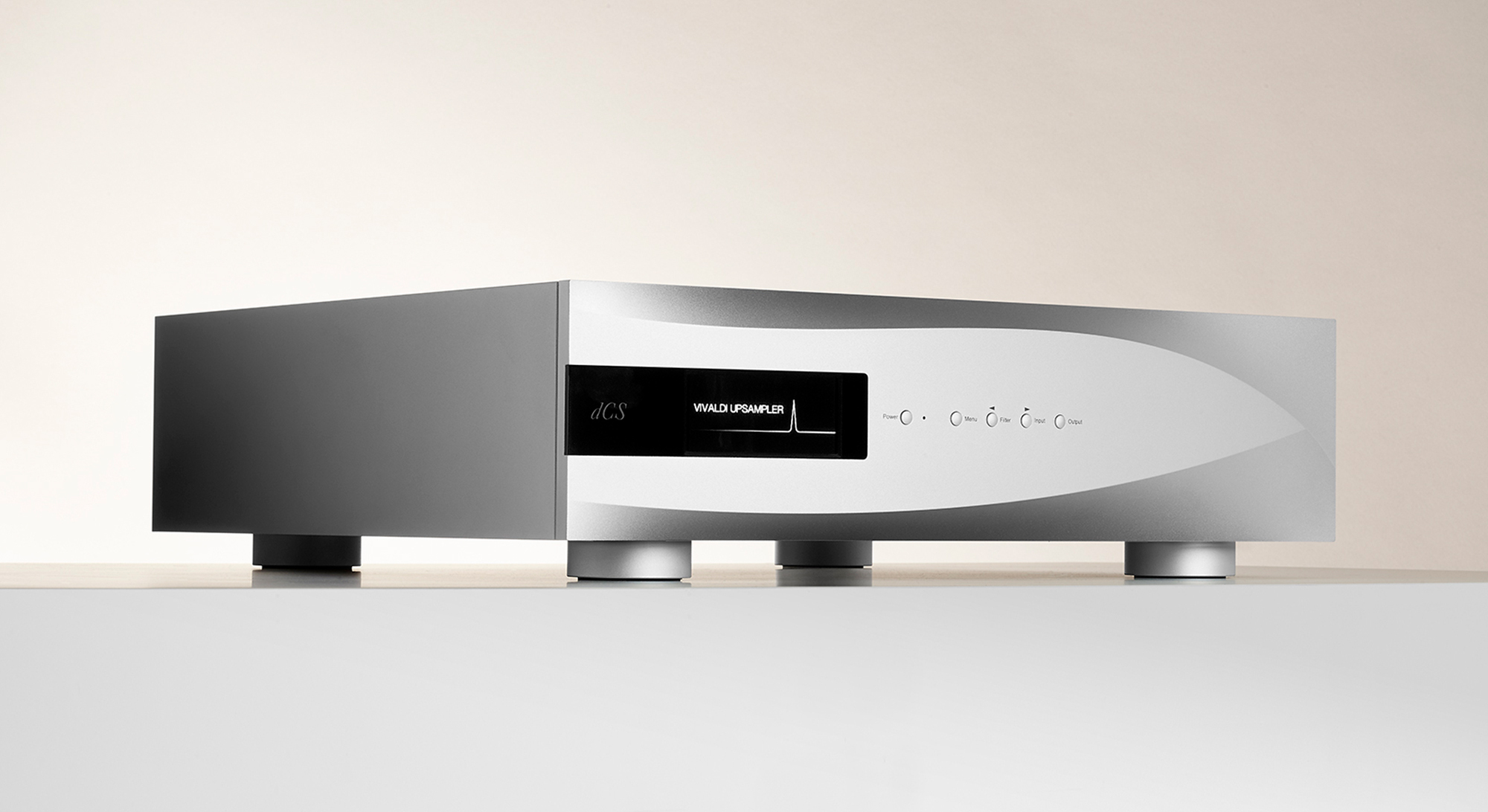

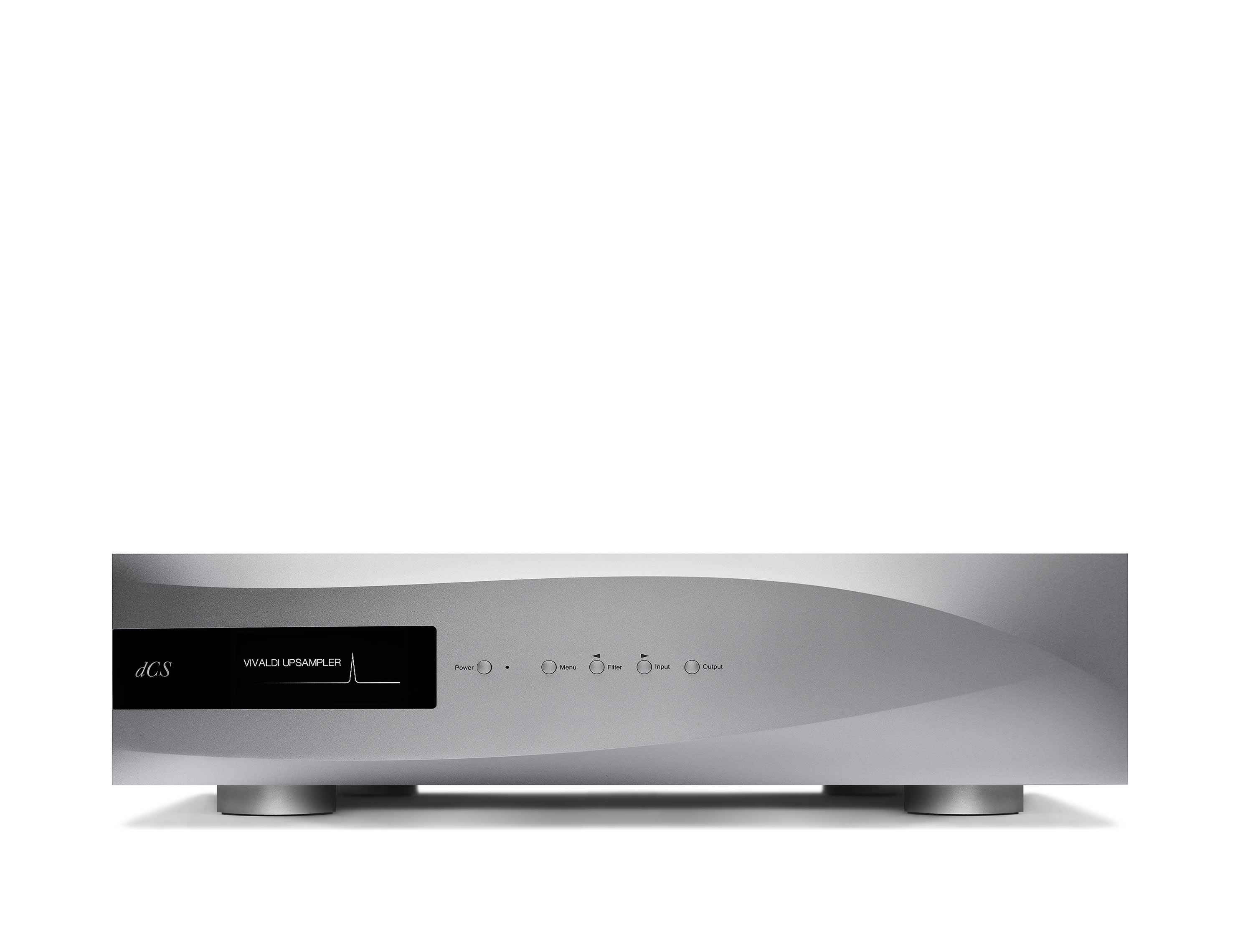

Vivaldi Upsampler 被設計為數位音響中的集大成者，將帶領您體驗前所未聞的真實表現。
Vivaldi Upsampler作為數位/數位轉換器，可處理任何的音樂數位訊源，並將原始取樣頻率轉換成高解析度之DXD(24位元信息(bit data)352.8或384 kS/s)，DSD（1位元信息在2.822或3.07MS/s）、DSDx2抑或標準高解析度的PCM（24位元信息升至192 kS/s)。Vivaldi Upsampler證明其明顯效果令人為之一亮：更加透明、立體、清晰、自然地表現完美舞台感。
Vivaldi Upsampler的特色是一切網路音樂的接駁裝置，可串流Tidal、Qobuz或由電腦及UPnP™儲存在網絡中的高解析音樂檔案。Vivaldi Upsampler中附加的非同步USB輸入端子也可以直接與電腦（PC）連接並支援頻率至192kS/s的音樂以及DSD和DSDx2之規格。USB介面以非同步的USB模式運作，讓Vivaldi Upsampler不受電腦中典型噪訊時鐘的時基誤差影響。
Apple認證授權Vivaldi Upsampler可支援iPod/iPhone-store數位媒體及AirPlay，亦能支援USB輸入方式，經由iPod/iPhone來傳輸音樂檔案至Vivaldi Upsampler來確保最完美的表現。
一系列可供個別選取的數位輸入端子（RJ45, USB, AES, SPDIF, SDIF-2, Toslink）造就Vivaldi Upsampler強大且完善的功能，讓CD Player中的Red Book CD或是多媒體串流播放器中的高解析音樂表現更出色、全面。
dCS不僅是數位音響外部時鐘的使用先驅，更改良多層級鎖相環(PLL, Phase-Locked-Loop)系統，設立世界級的精確標準，使我們能在未來的音響系統中輕鬆掌控時基誤差的干擾。
想輕鬆使用這款多功能的產品，使用者僅需選擇使用全彩的前板選單、dCS Mosaic App或dCS遙控器便能做到。dCS Mosaic App也能讓使用者改變DAC的輸入和適應不同系統的聲音調整，更加簡化了控制的流程。
dCS軟體升級的操作方式，讓我們不論是增添新功能，安裝提升聲音表現或適應數位格式的更新，都能透過Vivaldi Upsampler輕鬆上手。

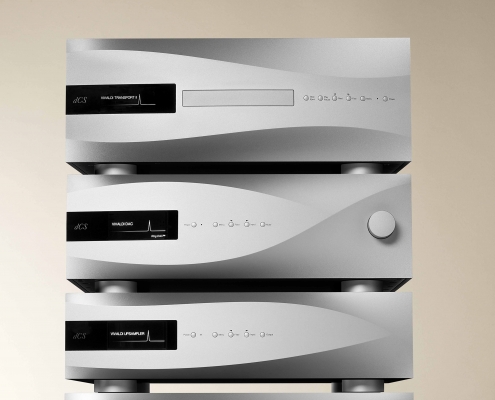

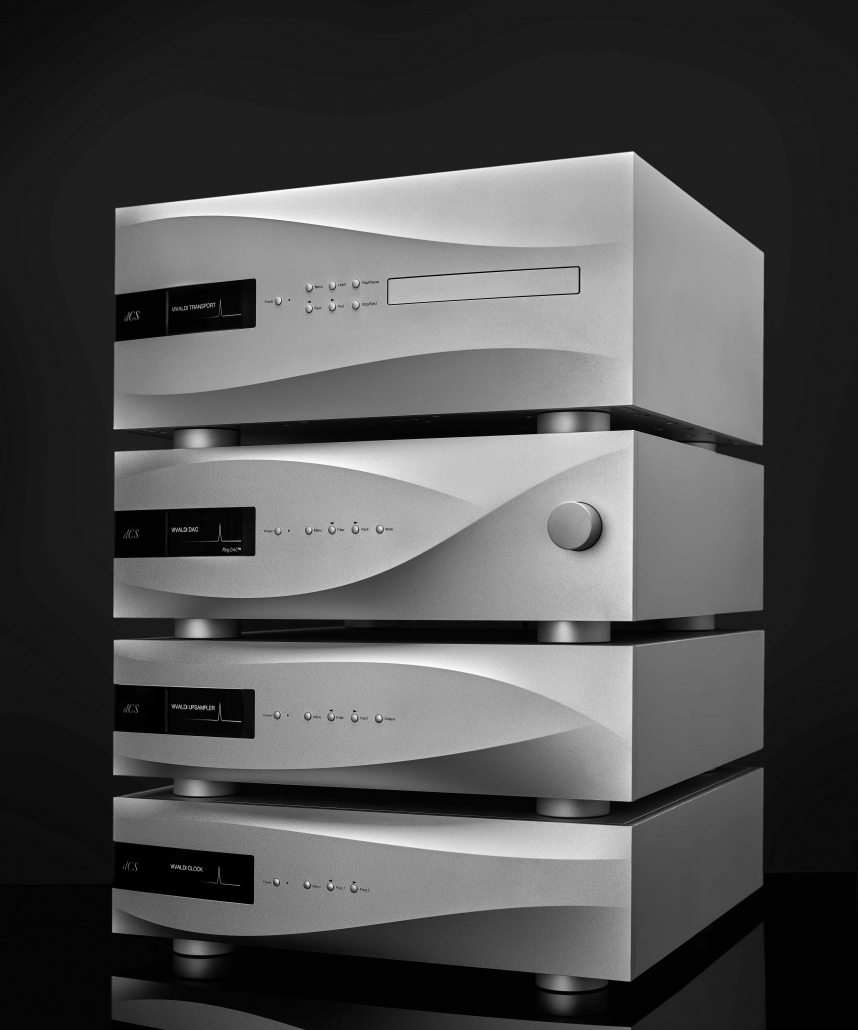

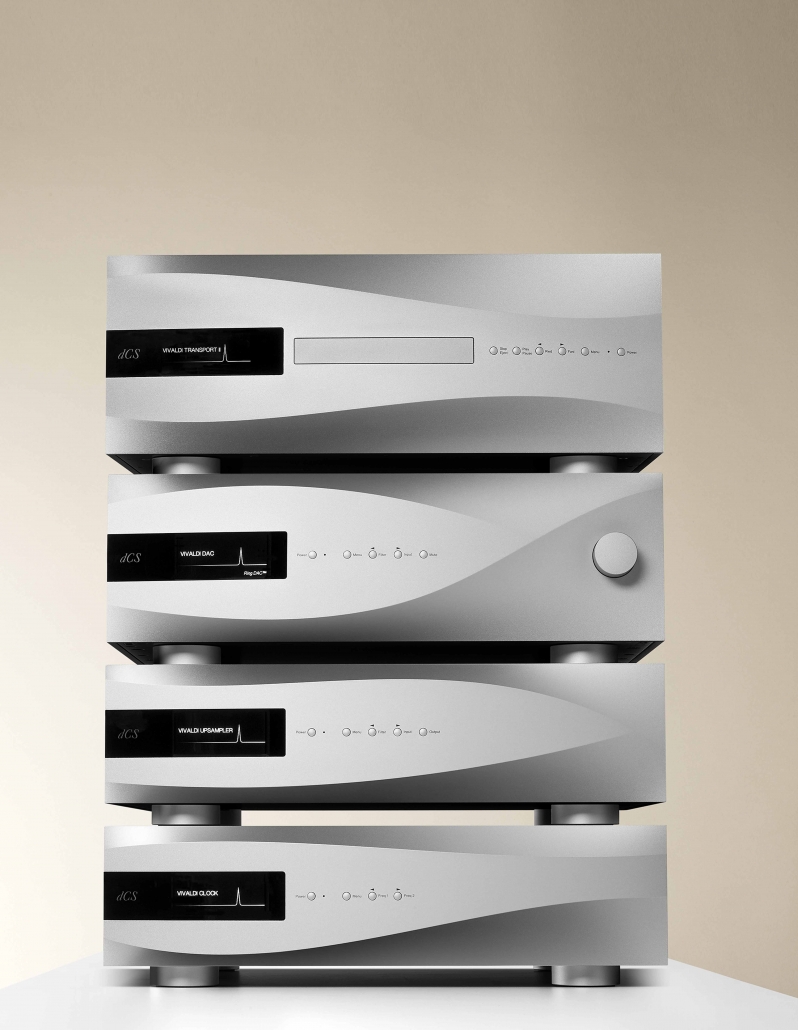

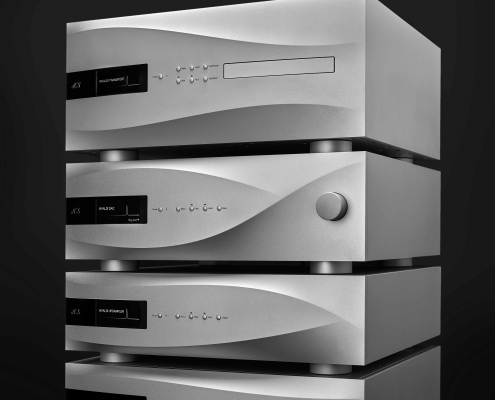

身為Vivaldi 數位音響播放系統的功臣之一，Vivaldi Upsampler使得音質表現更趨於自然流露並富有真實感。
規格
| 種類 | Digital-to-Digital Converter. |
| 顏色 | Silver or Black. |
| 尺寸 | 444mm/17.5” x 435mm/17.2” x 125mm/5.0”. Allow extra depth for cable connectors. Allow space for air flow around the unit. |
| 重量 | 14.2 kg/31.3lbs. |
| 數位輸入 | Network interface on an RJ45 connector – Acts as UPnP™ renderer, streaming digital music from a NAS or local computer over a standard Ethernet network, decoding all major lossless formats including FLAC, WAV & AIFF up to 24 bit 384kS/s native sample rate or DSD/128 in DFF or DSF formats. Other supported file formats include ALAC, MP3, M4a, AAC, WMA and OGG. Some formats are limited to lower sample rates. Accepts data streamed from an iPod, iPhone or iPad via Apple AirPlay, 44.1 or 48kS/s only. USB 2.0 interface on a type B connector. Operates in Asynchronous USB mode, Audio Class 1 or Class 2. Class 2 mode will accept up to 24 bit PCM at up to 384 kS/s and DSD/64 or DSD/128 in DoP format. USB-on-the-go interface on A-type connector, streams audio files from a USB flash drive. Will stream up to 24 bit PCM at up to 384kS/s plus DSD/64 or DSD/128 in DFF or DSF formats and operates in asynchronous USB mode. 1x AES3 on a 3-pin female XLR connector. 4x SPDIF on 2x RCA Phono, 1x BNC connectors and 1x TosLink optical connector. 1x SDIF-2 PCM interface on 2x BNC connectors + Word Clock. All electrical digital inputs will accept PCM data at up to 24 bit PCM at 32, 44.1, 48, 88.2, 96, 176.4, 192kS/s & DoP. The TosLink input and SDIF-2 interface are limited to a maximum of 96kS/s. |
| 數位輸出 | 2x AES3 on 3-pin female XLR connectors. Each outputs 24 bit PCM at 32, 44.1, 48, 88.2, 96, 176.4, 192kS/s & DSD/64 in DoP format, OR as a Dual AES pair at 88.2, 96, 176.4, 192, 352.8, 384kS/s or DSD/64 or DSD/128. 2x SPDIF on RCA Phono and BNC connectors. Each outputs 24 bit PCM at 32, 44.1, 48, 88.2, 96, 176.4, 192kS/s & DoP. |
| 升頻選項 | Data from any input may be converted to 24 bit PCM at 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8 or 384kS/s or DSD/64 or DSD/128. The output sample rate must be equal to or greater than the input sample rate. |
| 時鐘輸入/出 | Word Clock input on 2x BNC connector. Accepts standard Word Clock at 32, 38.4, 44.1, 48, 88.2, 96, 176.4 or 192kHz. Sensitive to TTL levels. Word Clock output on 1x BNC connector. Outputs standard Word Clock at a frequency equal to the (single wire) output data rate, or 44.1kHz when set to output DSD. |
| Spurious Responses | Better than -100dB0 @ 20Hz-20kHz for Fs> 32kS/s, 20Hz-14kHz for 32kS/s. |
| Filters | A choice of anti-alias filters is available for 12 popular conversions. |
| 軟體升級 | Downloaded and installed from the internet via the Network interface. |
| 操作方式 | Vivaldi 2.0 Controller App available for iOS. dCS Premium Remote handset is supplied with Vivaldi DAC. RS232 (controlled by a third party device). |
| 電源供應 | Factory set for 100, 115, 220 or 230V AC, 50-60Hz. |
| 消耗功率 | 15 Watts typical/18 Watts maximum. |
